This section shows how to perform monotone decomposition on a noised random curve generated from Gaussian process.

using MonotoneDecomposition
using Plots
using Random

Firstly, generate random data from Gaussian process with square kernel,

seed = 16
Random.seed!(seed)
x, y, x0, y0 = gen_data(100, 0.5, "SE_1");
[ Info: σ = 0.5, resulting SNR = 0.8134045943613267

Save the simulated data for reproducing if seed failed.

serialize("../res/demo/demo-seed$seed-se1_sigma0.5.sil", [x, y, x0, y0])

With Cubic B-splines

fixJ = true

Pefrom Monotone Decomposition with Cubic B-splines, where the number of basis functions is chosen by cross-validation for cubic splines.

Random.seed!(seed)
μs = 10.0 .^ (-6:0.05:0)
D, μmin, errs, σerrs = cv_mono_decomp_cs(x, y, ss = μs,
                            fixJ = true, x0 = x0,
                            figname = "cvspl.png",
                            nfold = 10, nfold_pre = 10);
yhat, yhatnew = cubic_spline(D.workspace.J)(x, y, x0);

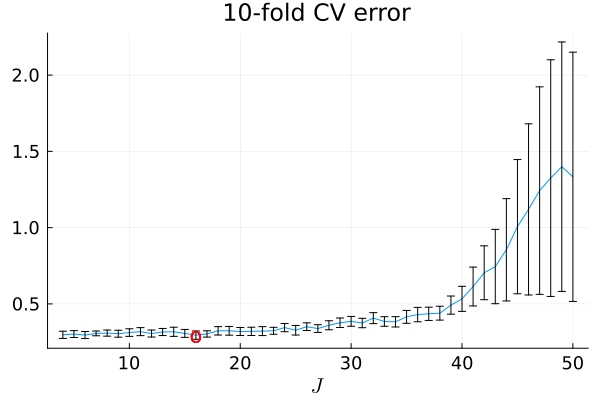

The CV error curve for J is

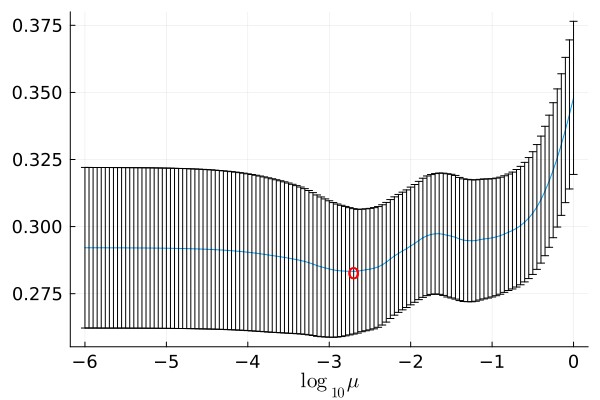

And the CV error curve for μ is

Plot the fitted curves:

plot([x, y], [x0, y0], D, yhatnew, prefix_title = "SE (ℓ = 1.0, σ = 0.5): ", competitor = "cs")

Save the figure:

savefig("../res/demo/demo-seed$seed-cs_vs_md-1J_and_mu-fit.pdf")
High-quality Figures

Here for simplicty, we just used the default GR backend of Plots.jl. But for a high-quality figure as in our paper, we will use the PGFPlotsX backend.

Re-plot CV Curve for Cubic Spline

If figname is provided, the CV error curve for the cubic fitting step is stored in figname[1:end-4] * "_bspl.png" with the results figname[1:end-4] * "_bspl_J.sil". Thus, if necessary, we can re-plot it and save as a high-quality figure. Also save the CV results:

mv("cvspl_bspl_J.sil", "../res/demo/cvspl_bspl_J.sil", force = true)
μerr, σerr, Js, nfold, ind = deserialize("../res/demo/cvspl_bspl_J.sil")
cvplot(μerr, nothing, 1.0 .* Js, nfold = nfold, ind0 = ind, lbl = L"J", title = "10-fold CV Error (Cubic Spline)")
savefig("../res/demo/demo-seed$seed-cs_vs_md-cs-cv.pdf")

Cross-validation plot

cvplot(errs, nothing, 1.0 * D.workspace.J:D.workspace.J, μs, lbl = ["", "\\log_{10}\\mu"], title = "10-fold CV Error (J = $(D.workspace.J))")

Also backup the results

cp cvspl_Jmu.sil ../res/demo/

And save the figure

savefig("../res/demo/demo-seed$seed-cs_vs_md-1J_and_mu-cv.pdf")
Standard Error of CV error

If you want to add the error bar of the CV error, you can specify σerrs.

cvplot(errs, σerrs, 1.0 * D.workspace.J:D.workspace.J, μs, lbl = ["", L"\log_{10}\mu"])

fixJ = false

Js = 4:50
Random.seed!(seed)
D, μmin, errs, σerrs = cv_mono_decomp_cs(x, y, ss = μs, fixJ = false,
                                        x0 = x0, Js = Js,
                                        figname = "cvbspl_varyJ.png",
                                        one_se_rule = false);
plot([x, y], [x0, y0], D, yhatnew, prefix_title = "SE (ℓ = 1, σ = 0.5): ", competitor = "cs")
savefig("../res/demo/demo-seed$seed-cs_vs_md-J_and_mu-fit.pdf")

the CV error curve for the cubic spline

![][cvbsplvaryJbspl.png]

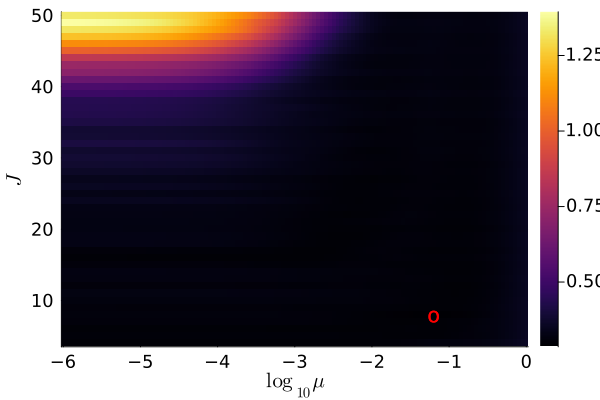

and the CV error curve for the decomposition with cubic splines

Or we can replot the heatmap of CV-error along the two parameter (J, μ) is as follows,

cvplot(errs, nothing, Js * 1.0, μs, lbl = ["J", "\\mu"], title = "10-fold CV Error")

save figure

savefig("../res/demo/demo-seed$seed-cs_vs_md-J_and_mu-cv.pdf")

Backup the results

cp cvbspl_varyJ_bspl_J.sil ../res/demo
cp cvbspl_varyJ_Jmu.sil ../res/demo

With Smoothing Splines

Perform monotone decomposition with smoothing splines, where the tuning parameter λ and μ are tuned by 10-fold cross-validation,

Fix λ

Random.seed!(seed)
D, μmin, μs, errs, σerrs, yhat, yhatnew = cv_mono_decomp_ss(x, y,
                                            one_se_rule = false, x0 = x0,
                                            figname = "cvss_1lam.png");
[ Info: μrange for compatible terms: [1.8328931746935614e-10, 2.8201715794541187]
[ Info: s0 = 9.016572505743026, s_residual = 22.92759440646598, s_smoothness = 1.3320202920152173, s_discrepancy = [1.4901161193847656e-8, 229.27594406465977]
[ Info: μrange: [1.8328931746935614e-10, 2.8201715794541187]
[ Info: Smoothing Splines with fixed λ

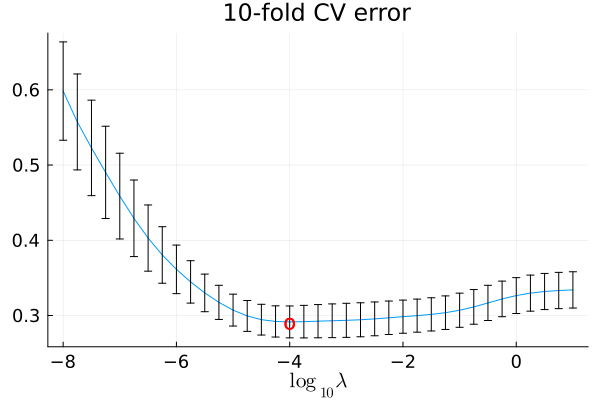

Firstly, the cross-validation curve for the smoothing spline is

Reproducing high-quality figure in manuscript

To produce a high-quality figure as in the manuscript

μerr, σerr, λs, nfold, ind = deserialize("cvss_1lam_ss.sil")
# cvplot(μerr, σerr, λs, nfold = nfold, ind0 = ind, lbl = "\\lambda")
cvplot(μerr, nothing, λs, nfold = nfold, ind0 = ind, lbl = "\\lambda", title = "10-fold CV (Smoothing Spline)")
savefig("../res/demo/demo-seed$seed-ss_vs_md-ss-cv.pdf")

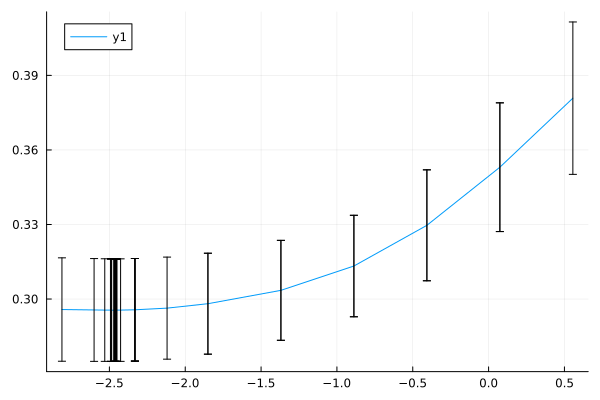

Then, given the optimal λ, tune μ, the CV error curve is as follows:

Reproducing high-quality figure in manuscript

To produce a high-quality figure as in the manuscript

cvplot(errs, nothing, μs, lbl = "\\mu", title = "10-fold CV Error (λ = $(D.λ))")
savefig("../res/demo/demo-seed$seed-ss_vs_md-1lam_and_mu-cv.pdf")

Plot the decomposition,

plot([x, y], [x0, y0], D, yhatnew, prefix_title = "SE (ℓ = 1, σ = 0.5): ")

save the fitness curve

savefig("../res/demo/demo-seed$seed-ss_vs_md-1lam_and_mu-fit.pdf")

Vary λ

Random.seed!(seed)
D, μmin, μs, errs, σerrs, yhat, yhatnew = cv_mono_decomp_ss(x, y, one_se_rule = false, x0 = x0,
                                            figname = "cvss_varylam.png",
                                            method = "double_grid",
                                            nλ = 50, ngrid_μ = 50,
                                            μrange = [1e-7, 1.0],
                                            rλs = 10.0 .^ (-1:0.05:1.2));

plot([x, y], [x0, y0], D, yhatnew, prefix_title = "SE (ℓ = 1, σ = 0.5): ")

save the figure

savefig("../res/demo/demo-seed$seed-ss_vs_md-lam_and_mu-fit.pdf")

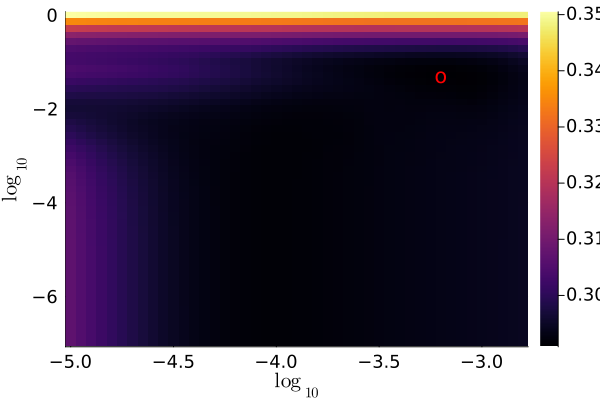

The CV error heatmap is

Alternatively, we can replot it:

cvplot("/tmp/cvss_varylam.sil", "ss")

save the results

mv cvss_varylam.sil ../res/demo/

and figure

savefig("../res/demo/demo-seed$seed-ss_vs_md-lam_and_mu-cv.pdf")
